SKU: GDE-SG-M-600kVA
Category: Transformer
Availability: Unlimited

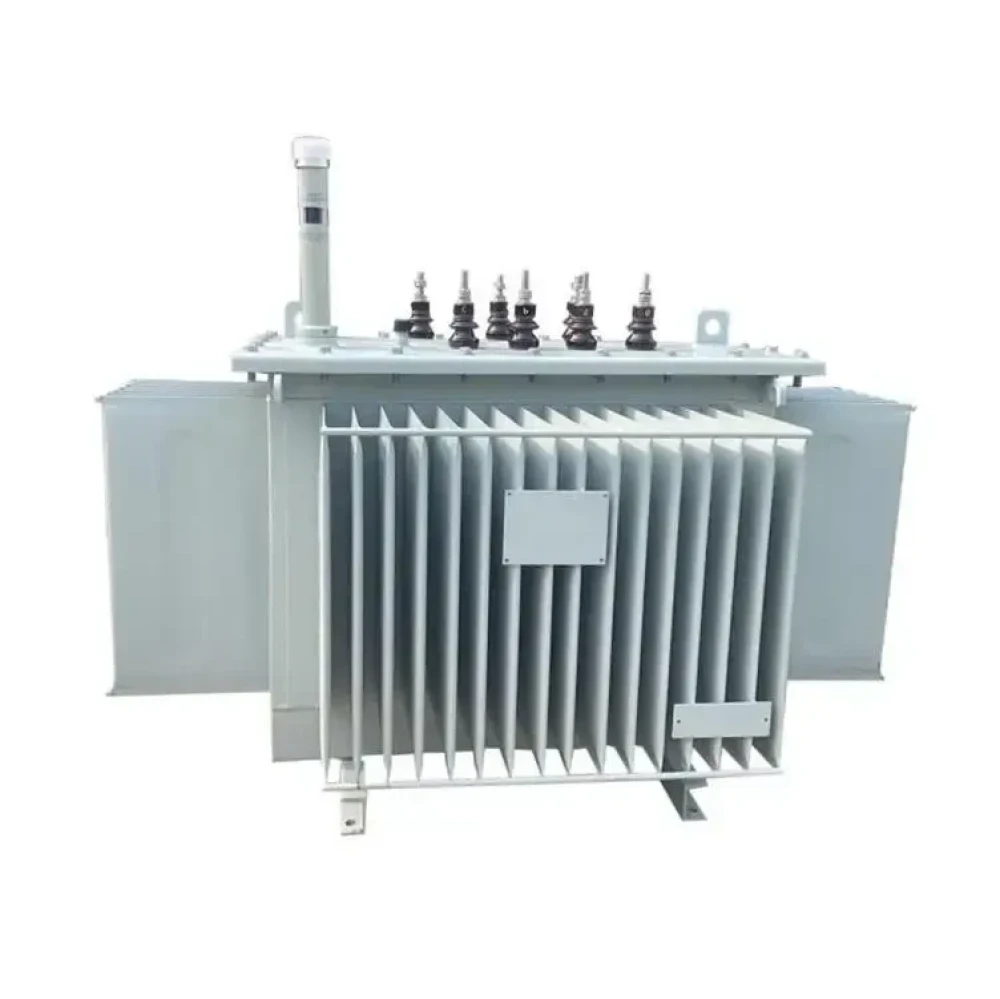

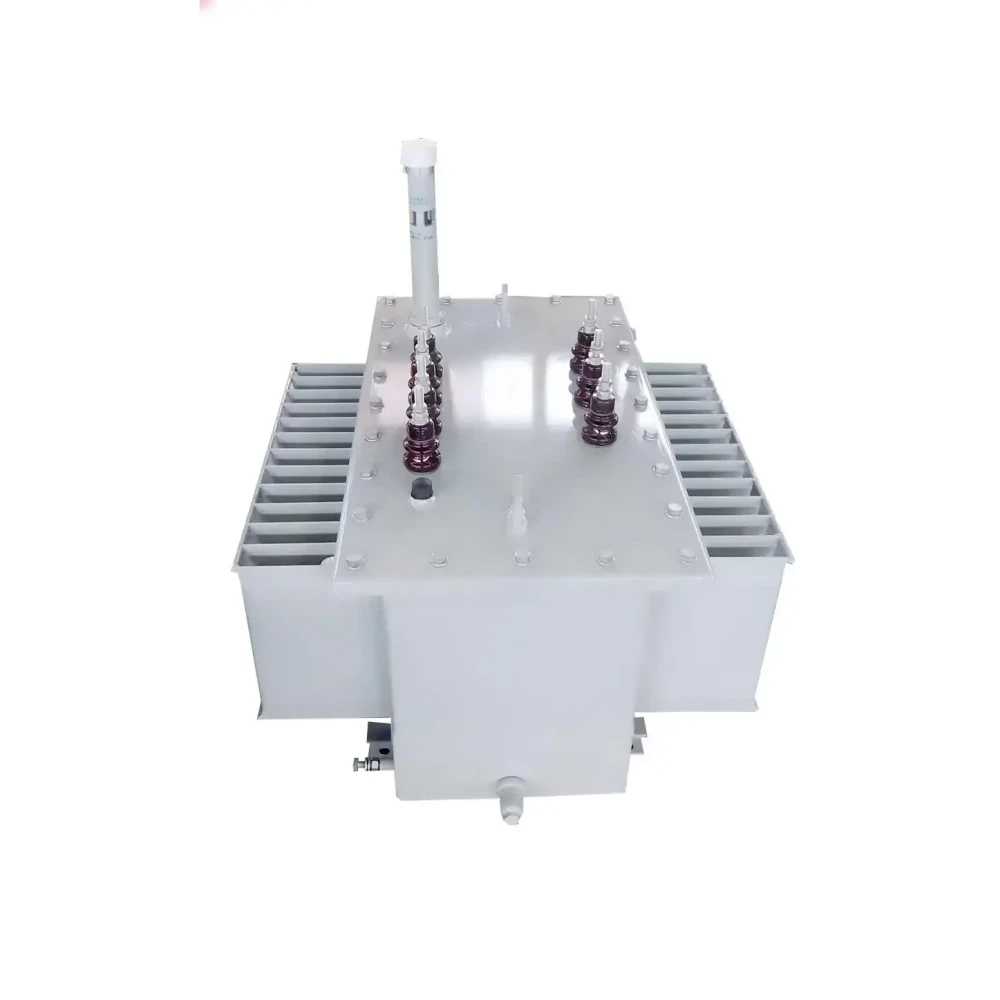

The TSTY 600kVA Isolation Transformer is engineered to deliver safe, stable, and efficient power distribution for heavy-duty industrial and commercial environments. With a 400V Delta primary and 400V Star secondary configuration, it provides effective electrical isolation, significantly improving safety while protecting sensitive equipment from power disturbances.
Built with copper-to-copper windings and a rugged oil-immersed design, this transformer minimizes electrical noise, prevents ground loop issues, and ensures clean, reliable power for critical operations. Its robust construction and high-quality silicon steel core make it suitable for continuous operation in demanding settings.
Designed for long-term performance, the SG-M-600kVA model is ideal for facilities where uptime, safety, and power quality are non-negotiable.
Best For:
✔ Manufacturing and industrial plants
✔ Data centers and critical infrastructure
✔ Large commercial facilities
✔ Applications requiring clean and isolated power
Brand: TSTY
Model Number:
Availability: In stock
Minimum order quantity: 1
Maximum order quantity:
Listed date: 14th Dec, 2025
Model: SG-M-600kVA
Rated Capacity: 600kVA
Primary Voltage (H.V): 0.4kV (400V)
Secondary Voltage (L.V): 0.4kV (400V)
Vector Group: Dyn11
Phase: 3-Phase
Frequency: 50Hz
Short Circuit Impedance: 4.5%
H.V Current: 909.33A
L.V Current: 909.33A
Losses
No-Load Losses: 1170W (±15%)
Load Losses: 6100W (±15%)
Construction & Design
Winding Material: Copper to Copper
Transformer Type: Oil-immersed
Cooling Method: ONAN
Oil Type: Mineral oil
Core Material: Silicon steel sheet
Physical Details
Dimensions (L × W × H): 1535 × 1040 × 1170 mm
Weight: 1740 kg
Safety & Monitoring
Oil level thermometer: Equipped
Oil level indicator: Equipped
Pressure relief device: Equipped
Lifecycle & Warranty
Service Lifetime: 15–20 years
Warranty: 2 Years
